Axminster Workshop Belt & Disc Sander 550W - 230V (AW200BDS) | 026107680

Axminster Workshop Belt & Disc Sander 550W - 230V (AW200BDS) | 026107680.

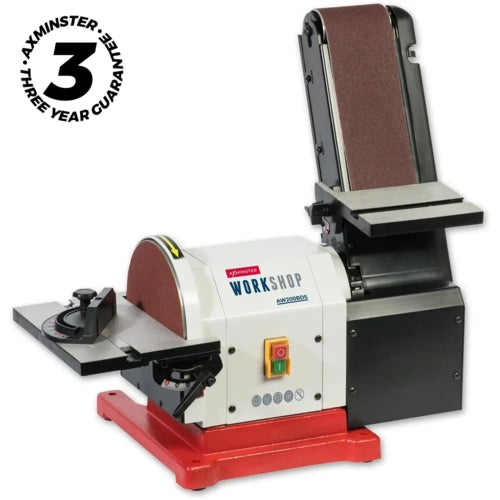

The Axminster Workshop AW200BDS combines a 100mm belt sander and a 200mm disc sander in a single compact and robust unit. Powered by a 550W induction motor with direct drive, the machine runs quietly, eliminating the need for drive belts and preventing power loss. Both the belt and disc are equipped with cast worktables, which pivot between 0° and 45°, supporting a wide range of sanding tasks. A mitre fence is included for bevel and compound sanding applications.

The belt platen can be set vertically, horizontally, or at any angle in between, offering excellent flexibility. An integrated fan at the 63mm extraction port improves airflow for efficient dust removal. When connected to a suitable extractor, nearly 100% dust extraction can be achieved. The heavy cast iron body absorbs vibration and includes mounting holes with rubber grommets for bench fixing, ensuring stability during use. Supplied with both an abrasive belt and a hook-and-loop disc, the AW200BDS is ready for immediate operation. A wide selection of replacement belts and discs is available for ongoing use. Please note, this machine is specifically designed for sanding wood and similar materials and should not be used for metal grinding.

Features & Benefits:

• Powerful Motor:550W quiet-running induction motor with direct drive for reliable performance.

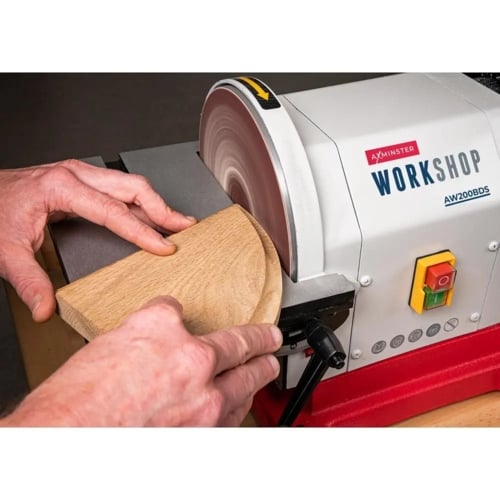

• Dual Function:Combines a 100mm belt sander and 200mm disc sander in one compact unit.

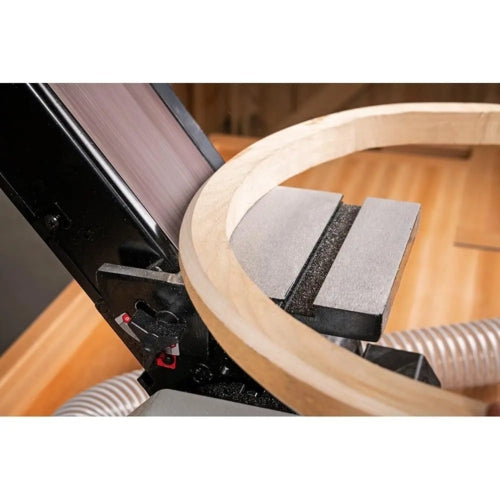

• Flexible Sanding:Belt platen adjustable vertically, horizontally, or at any angle.
• Adjustable Worktables:Cast iron tables pivot 0° to 45° for bevel and angled sanding.
• Dust Extraction:63mm outlet with powered fan provides efficient dust collection when used with an extractor.
• Stable Build:Cast iron construction reduces vibration; mounting holes with rubber grommets for secure bench installation.
• Supplied Ready to Use:Includes an abrasive belt and hook-and-loop disc.

Specifications:

Model:AW200BDSCode:026107680Power:550WVoltage:230VAbrasive Belt Size:100mm x 915mmAbrasive Disc Diameter:200mmBelt Speed:520m/minDisc Speed:2,980rpmDust Extraction Outlet:63mmTable Size (Belt):170mm x 120mmTable Size (Disc):264mm x 190mmOverall Dimensions (L x W x H):590mm x 520mm x 380mmNett Weight:26kgRating:Home Workshop

Scope of Delivery:

• 1 x Axminster Workshop Belt & Disc Sander 550W - 230V (AW200BDS)
• 1 x Mitre Fence
• 1 x Abrasive Belt
• 1 x Hook-and-Loop Abrasive Disc

Axminster 3 Year Guarantee:

Look for the icon:It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!

The right machine:Covered by the Axminster 3 Year Guarantee, the product is designed and intended to be used by businesses with occasional periods of continuous work. It must be regularly maintained and serviced annually. The guarantee is void when used for industrial use or as part of a production line.

Keep your receipt:You don’t need to register your new machine to benefit – just keep your proof of purchase.

Free parts & labour:We are so confident in the quality that we cover all parts and labour free of charge for three years.

The 3 Year Guarantee covers parts and labour provided:

• You have purchased the correct product for your intended purpose in accordance with our classification.
• The product is operated correctly.
• You have maintained and serviced the product in accordance with the instructions (proof may be required).

The Guarantee does NOT cover:

• Products purchased for use outside our classification advice e.g. Workshop product used for business purposes.
• Consumable items e.g., original blades, knives, drive belts, or abrasives.
• Issues identified due to normal wear and tear, misuse, and neglect.
• The product has been operated with blunt/incorrect tooling.
• The product has been modified.

Please Note:Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
